Husqvarna 135 Mark II Gas Chainsaw (Bar length 16 in & Cylinder displacement 2.3 cu.inch)
Product Description

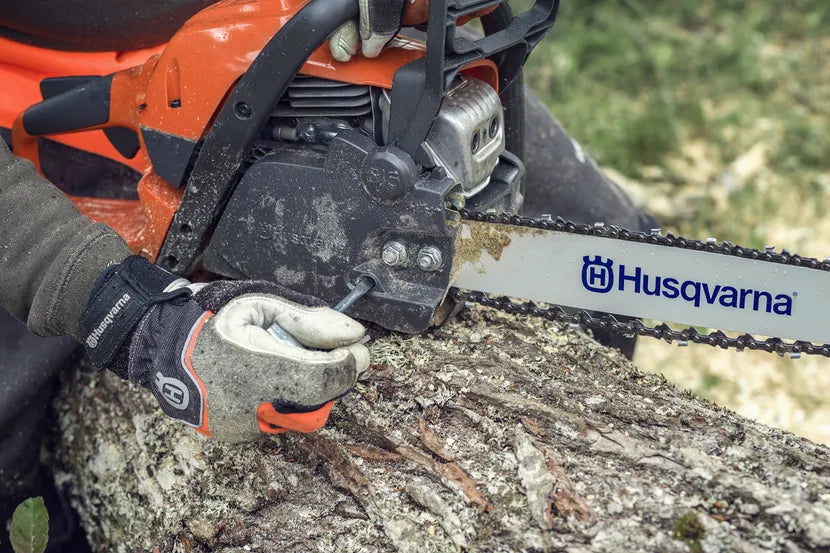

Robust, reliable and easy to use saw with ample cutting performance for homeowners. The perfect garden chainsaw for occasional cutting tasks such as cutting firewood and felling smaller trees. Starts quickly and handles easily, and thanks to the side mounted chain tensioner, tensioning the chain is both quick and easy.
Specifications
| Engine |
135 Mark II
Art no: 967 86 18‑16
|
| Power output | 2.1 hp |
|---|---|
| Cylinder displacement | 2.3 cu.inch |
| Maximum power speed | 9,000 rpm |
| Idling speed | 3,000 rpm |
| Torque, max. | 1.84 Nm |
| Torque, max. at rpm | 8,000 rpm |
| Clutch engagement speed (±120) | 4,000 rpm |
| Fuel consumption | 725 g/kWh |
| Fuel consumption | 1.595 lbs/h |
| Spark plug | NGK BPMR7A |
| Electrode gap | 0.022 in |
| Ignition module air gap | 0.012 in |
| Oil pump type | Automatic |
| Emission | |
|
Exhaust emissions (CO2 EU V)
|
804 g/kWh |
| Equipment | |
| Bar length (inch) | 16 in |
| Recommended bar length, min | 14 in |
| Recommended bar length, max | 16 in |
| Chain type | S93G |
| Gauge | .050" |
| Pitch | 3/8" mini |
| Sprocket type | Spur 6 |
| Dimensions | |
| Weight (excl. cutting equipment) | 10.36 lbs |
| Lubricant | |
| Lubricant type | Husqvarna 2 stroke or equiv. at 50:1 |
| Oil tank volume | 0.549 US pint |
| Oil tank volume | 0.26 l |
| Sound and Noise | |
| Sound power level, guaranteed (LWA) | 116 dB(A) |
| Sound power level, measured | 114.34 dB(A) |
| Sound pressure level at operators ear | 102 dB(A) |
| Vibration | |
| Equivalent vibration level (ahv, eq) front handle | 3.72 m/s² |
| Equivalent vibration level (ahv, eq) rear handle | 5.5 m/s² |
